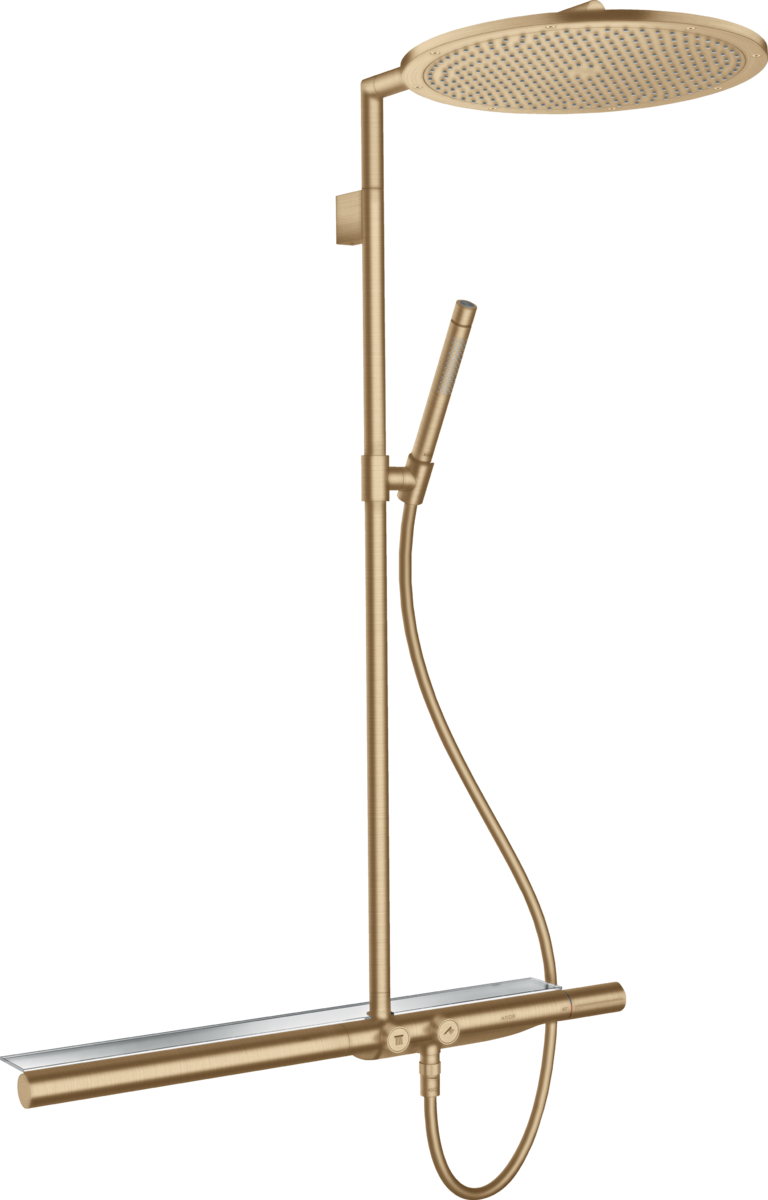

consists of: overhead shower, baton hand shower, shower thermostat, shower hose, shower holder, shower bar
overhead shower AXOR overhead shower 350 1jet
shower head size overhead shower: 350 mm
spray type overhead shower: PowderRain
90° position adjustable hand shower holder, pivots left and right, up and down
shelf made of safety glass
surface shelf: chrome
maximum flow rate at 3 bar: 24 l/min
flow rate PowderRain spray (at 3 bar): 19,5 l/min
spray type hand shower: Rain, Mono
flow rate of hand shower at 3 bar: 12 l/min
minimum flow pressure: 1 bar
max. operating pressure: 10 bar
shower bar diameter: 25 mm
shower arm length overhead shower: 400 mm
swivel shower arm
thermostat AXOR 800
safety stop at 40°C
adjustable hot water limitation
convenient diversion via Select button
simultaneous utilization of 2 functions
suitable for continuous flow water heaters
mounting type: exposed installation
connection dimension DN15
connection thread G ½
centre distance 150 ± 12 mm
intrinsically safe against backflow
2 functions
